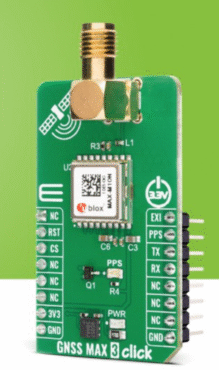

A new GNSS board is available from Mikroe. The GNSS MAX 3 Click is a compact add-on board designed for low-power satellite positioning for embedded applications. It is based on the MAX-M10N-10B, a professional-grade standard-precision GNSS receiver from u-blox, built on the ultra-low-power u-blox M10 platform.
Key Features
- Multi-Constellation GNSS. Offers exceptional tracking capability across GPS, Galileo, BeiDou, and QZSS/SBAS systems for reliable global coverage
- Ultra-low power. Uses the u-blox M10 platform and the LEAP (Low Energy Acquisition and Processing) energy-saving mode for extended battery life
- Enhanced RF immunity. Features an additional SAW (Surface Acoustic Wave) filter for excellent performance in the presence of strong RF interference
- Interference detection. Includes integrated jamming and spoofing detection for robust security and reliable operation
- Fast acquisition. Supports AssistNow Predictive and Live Orbits for faster satellite acquisition (time-to-first-fix)
- Standard precision. Provides consistent L1 GNSS performance at a standard precision level.
Applications
- Asset tracking devices and logistics solutions requiring long battery life and accurate location data
- Portable devices and wearables where power efficiency is critical
- Industrial monitoring and sensor applications requiring reliable, interference-resilient positioning
- Any application demanding interference-resilient GNSS positioning.
EmbeddedWiki
Hundreds of ready-to-use embedded projects featuring this Click board are available on EmbeddedWiki.
